DMLR Workshop at International Conference on Learning Representations (ICLR 24) · 2024

Retail-786k - a Large-Scale Dataset for Visual Entity Matching

Bianca Lamm, Janis Keuper

Why this publication matters

Matching retail products requires more than recognizing broad categories such as milk or coffee. Retail-786k supplies a large collection of real advertisement images for studying which products represent the same kind of item. It gives researchers a demanding setting for testing whether that understanding transfers to products they have not seen before.

Abstract

Entity Matching (EM) defines the task of learning to group objects by transferring semantic concepts from example groups (=entities) to unseen data. Despite the general availability of image data in the context of many EM-problems, most currently available EM-algorithms solely rely on (textual) meta data. In this paper, we introduce the first publicly available large-scale dataset for “visual entity matching”, based on a production level use case in the retail domain. Using scanned advertisement leaflets, collected over several years from different European retailers, we provide a total of ∼786k manually annotated, high resolution product images containing ∼18k different individual retail products which are grouped into ∼3k entities. The annotation of these product entities is based on a price comparison task, where each entity forms an equivalence class of comparable products. Following on a first baseline evaluation, we show that the proposed “visual entity matching” constitutes a novel learning problem which can not sufficiently be solved using standard image based classification and retrieval algorithms. Instead, novel approaches which allow to transfer example based visual equivalent classes to new data are needed to address the proposed problem. The aim of this paper is to provide a benchmark for such algorithms. Information about the dataset, evaluation code and download instructions are provided under the website: https://www.retail-786k.org/.

Abstract source ↗

Figures

Retail advertisement crops showing visually similar products and their prices. — **Figure 1.** In the context of retail products, the term “visual entity matching” refers to the task of linking individual product images from diverse sources to a semantic product grouping. Here all images show different products from the same entity which is defined by the fact that single images are used as “placeholders“ by retailers to promote all products of the entity. For higher resolution version, refer to Figure 15 in the appendix. View in source ↗

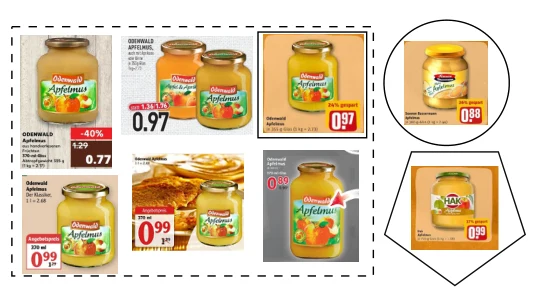

**Figure 2.** Inside the dashed rectangle, samples from a representative entity show the typical intra-entity variations. In contrast to this, there are samples having a strong visually similarity although they belong to different entities. These samples are framed by the solid rectangle, circle, and polygon. View in source ↗

Cite this paper

Download .bib

@inproceedings{lamm2024retail786ka42,
  title = {{Retail-786k - a Large-Scale Dataset for Visual Entity Matching}},
  author = {Bianca Lamm and Janis Keuper},
  booktitle = {DMLR Workshop at International Conference on Learning Representations (ICLR 24)},
  year = {2024},
  url = {https://www.retail-786k.org/}
}

Figures and abstract are reproduced from the linked research sources. Credit remains with the authors and publishers.
