Geophysical Prospecting · 2025

Towards deep learning for seismic demultiple

Mario Fernandez,, Matthias Delescluse,, Alain Rabaute, Norman Ettrich, Janis Keuper

Why this publication matters

Unwanted repeated reflections complicate the interpretation of seismic surveys. This study compares ways to train models on simulated data and finds value in predicting those unwanted signals before subtracting them. Tests on field recordings help connect the training choices to practical processing challenges, including noise.

Abstract

Multiple attenuation is an important step in seismic data processing, leading to improved imaging and interpretation. Radon-based algorithms are commonly used for discriminating primaries and multiples in common depth point seismic gathers. This process implies a large number of parameters that need to be optimized for a satisfactory result. Moreover, Radon-based approaches sometimes present challenges in discriminating primaries and multiples with similar moveouts. Deep learning, based on convolutional neural networks, has recently shown promising results in seismic processing tasks that could mitigate the challenges of conventional methods. In this work, we detail how to train convolutional neural networks with only synthetic seismic data for assessing the demultiple problem in field datasets. We compare different training strategies for multiples removal based on different loss functions. We evaluate the performance of the different strategies on 400 clean and noisy synthetic data. We found that training a convolutional neural network to predict the multiples and then subtracting them from the input image is the most effective strategy for demultiple, especially for noisy data. Finally, we test our model to predict multiples on an elastic synthetic dataset and four distinctive field datasets. Our proposed approach reports successful generalization capabilities predicting and eliminating internal and surface-related multiples before and after migration while mitigating Radon challenges and relieving the user from any manual tasks. As a result, our effectively trained models bring a new valuable tool for seismic demultiple to consider in existing processing workflows.

Abstract source ↗

Figures

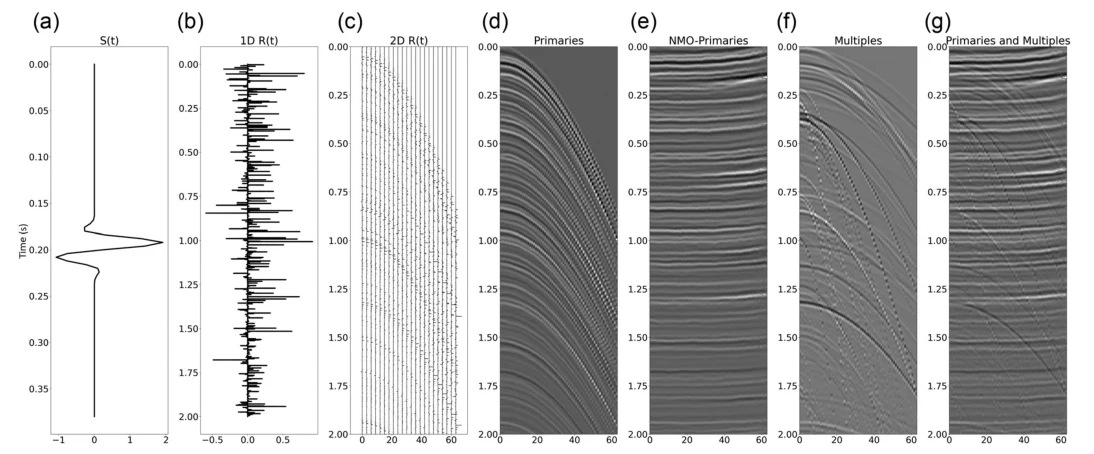

Synthetic seismic training-data generation from wavelets and reflectivity to mixed traces. — **Figure 1.** Generation of training data. (a) Source time function. (b) 1D reflectivity series. (c) 2D reflectivity series. (d) Synthetic primaries obtained by convolution of the source time function and the 2D reflectivity series. (e) Primaries (P) after NMO correction. (f) Multiples (M) generated following the same workflow as primaries. (g) Mixed primaries and multiples (C= P+ M). View in source ↗

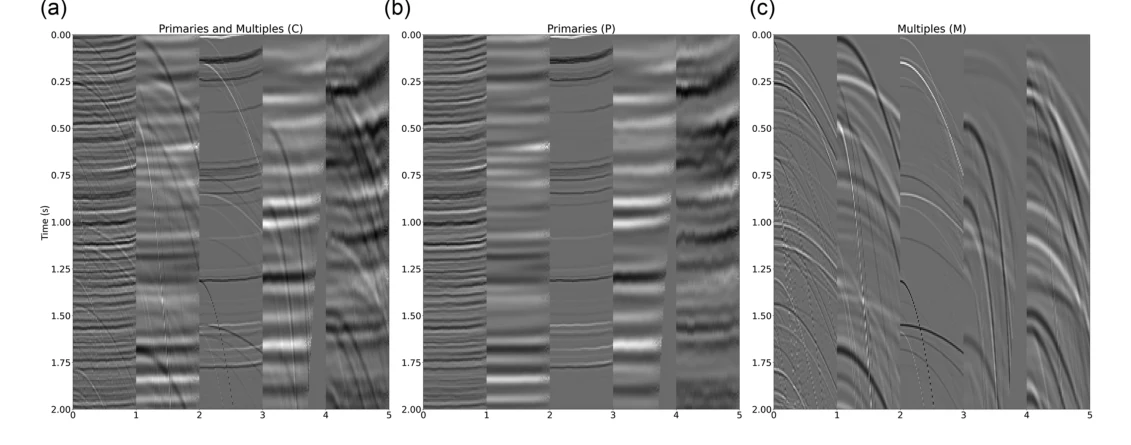

**Figure 2.** Training data examples in the form of five CDP gathers of varied frequency and reflectivity content. (a) Synthetic gathers (labelled C in the text) with mixed primaries and multiples. (b) Primaries (labelled P in the text). (c) Multiples (labelled M in the text). View in source ↗

Cite this paper

Download .bib

@article{fernandez2025towardsdeeplearning59,
  title = {{Towards deep learning for seismic demultiple}},
  author = {Mario Fernandez, and Matthias Delescluse, and Alain Rabaute and Norman Ettrich and Janis Keuper},
  journal = {Geophysical Prospecting},
  year = {2025},
  url = {https://onlinelibrary.wiley.com/doi/full/10.1111/1365-2478.13672},
  doi = {10.1111/1365-2478.13672}
}

Figures and abstract are reproduced from the linked research sources. Credit remains with the authors and publishers.
